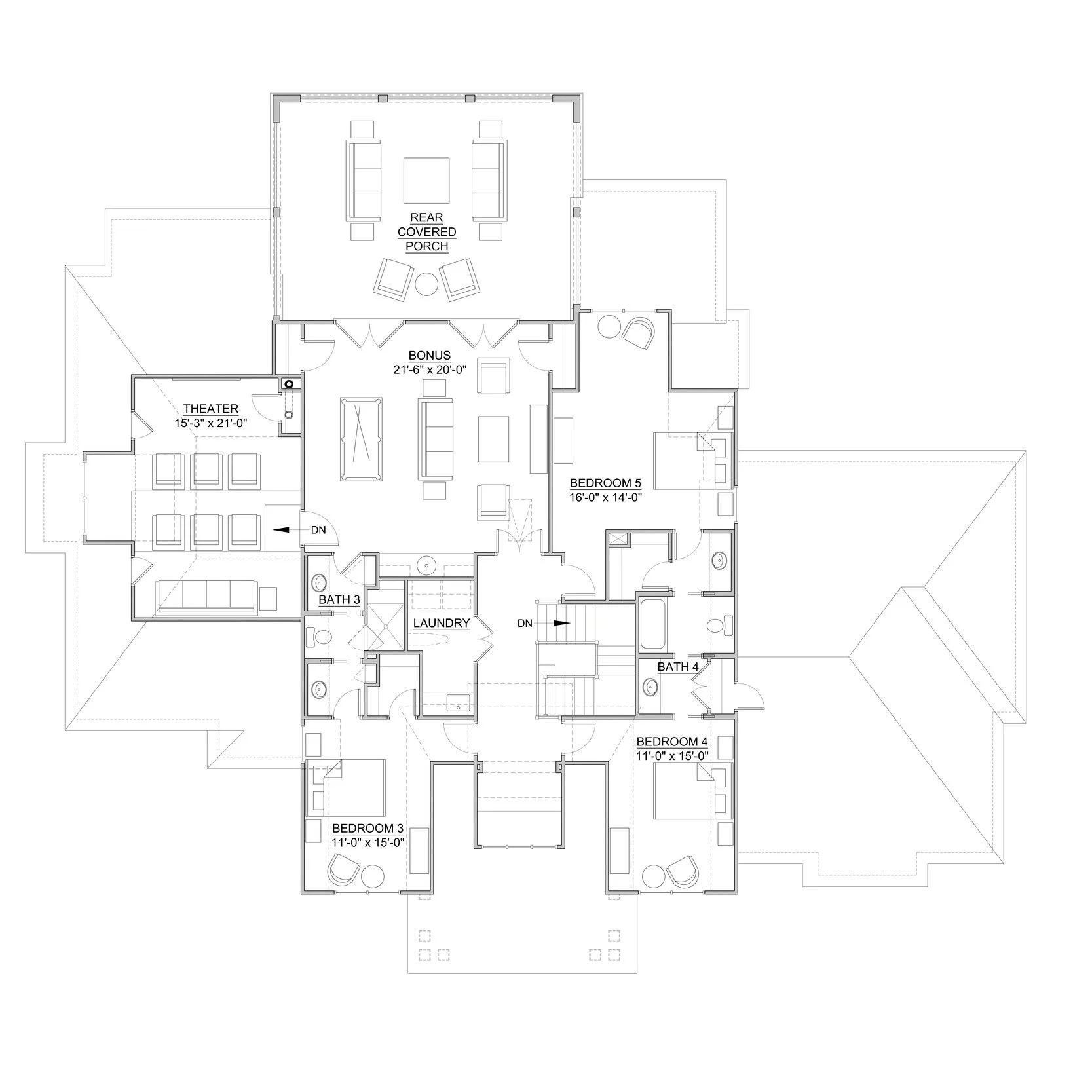

Riverchase_Sterling A CRAWL_(3) Second Floor Plan [24x36].jpg
Riverchase_Sterling%252BA%252BCRAWL_%2525281%252529%252BFront%252BElevation%252B%25255B24x36%25255D.jpg
Riverchase_Sterling A CRAWL_(2) First Floor Plan [24x36].jpg
Riverchase_Sterling A CRAWL_(3) Second Floor Plan [24x36].jpg

SIMMONS - 5087sf

1,975.00

PDF SET OF CONSTRUCTION DOCUMENTS.
Includes floor plans, roof plan, elevations, sections, details, & electrical plans. Required to be engineered for local codes.
PDF Set allows for unlimited copies, single build only.

Total SF 7182 sq. ft.
Total SF Heated 5087 sq. ft
Bedrooms 5
Bathrooms 4
Width: 86’-6”
Depth: 76’-9”
Attached three-car garage
Bonus room
Home theater
Covered front porch
Covered back porch
Upstairs covered porch

A = STUCCO, B = SIDING, C = BRICK

Add To Cart

Larger images displayed below

Option B (Siding)  Total SF 7182 sq. ft. Total SF Heated 5087 sq. ft Bedrooms 5 Bathrooms 4 Width: 86’-6” Depth: 76’-9” Attached three-car garage Bonus room Home theater Porches: Covered front porch, Lower covered back porch, Upstairs covered porch

Option B (Siding)

Total SF 7182 sq. ft.
Total SF Heated 5087 sq. ft
Bedrooms 5
Bathrooms 4
Width: 86’-6”
Depth: 76’-9”
Attached three-car garage
Bonus room
Home theater
Porches: Covered front porch, Lower covered back porch, Upstairs covered porch

Option C (Brick)  Total SF 7261 sq. ft. Total SF Heated 5159 sq. ft Bedrooms 5 Bathrooms 4 Width: 87’-6” Depth: 76’-9” Attached three-car garage Bonus room Home theater Porches: Covered front porch, Lower covered back porch, Upstairs covered porch

Option C (Brick)

Total SF 7261 sq. ft.
Total SF Heated 5159 sq. ft
Bedrooms 5
Bathrooms 4
Width: 87’-6”
Depth: 76’-9”
Attached three-car garage
Bonus room
Home theater
Porches: Covered front porch, Lower covered back porch, Upstairs covered porch
